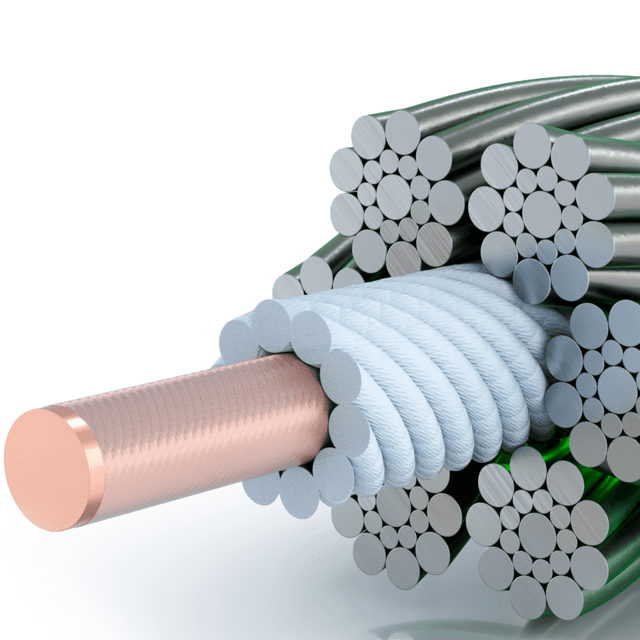

For performing steering or work functions these ropes include one or more electrical conductors.
Properties
Construction: 114 wires Seale (6 x 19), regular lay
Technical terms of delivery to DIN EN 12385, ISO 4344
Standard number of conductors: 1 (for details see download)
Number of load bearing wires in the outer strands: 114
Tensile grade 1770 N/mm², steel wire galvanized
| nom. rope dia. (mm) | calculated mass (kg/m) | min. breaking load (kN) | electr. conductor (cross-section mm²) | part-no. |
|---|---|---|---|---|
| 6,5 | 0,155 | 24,7 | 0,96 | 775306532 |
| 7 | 0,179 | 29,6 | 0,96 | 775307032 |
| 8 | 0,234 | 38,2 | 0,96 | 775308032 |
| 9 | 0,296 | 48,2 | 0,96 | 775309032 |
| 10 | 0,366 | 61,95 | 0,96 | 775310033 |
