PAWO F 4e

Product information

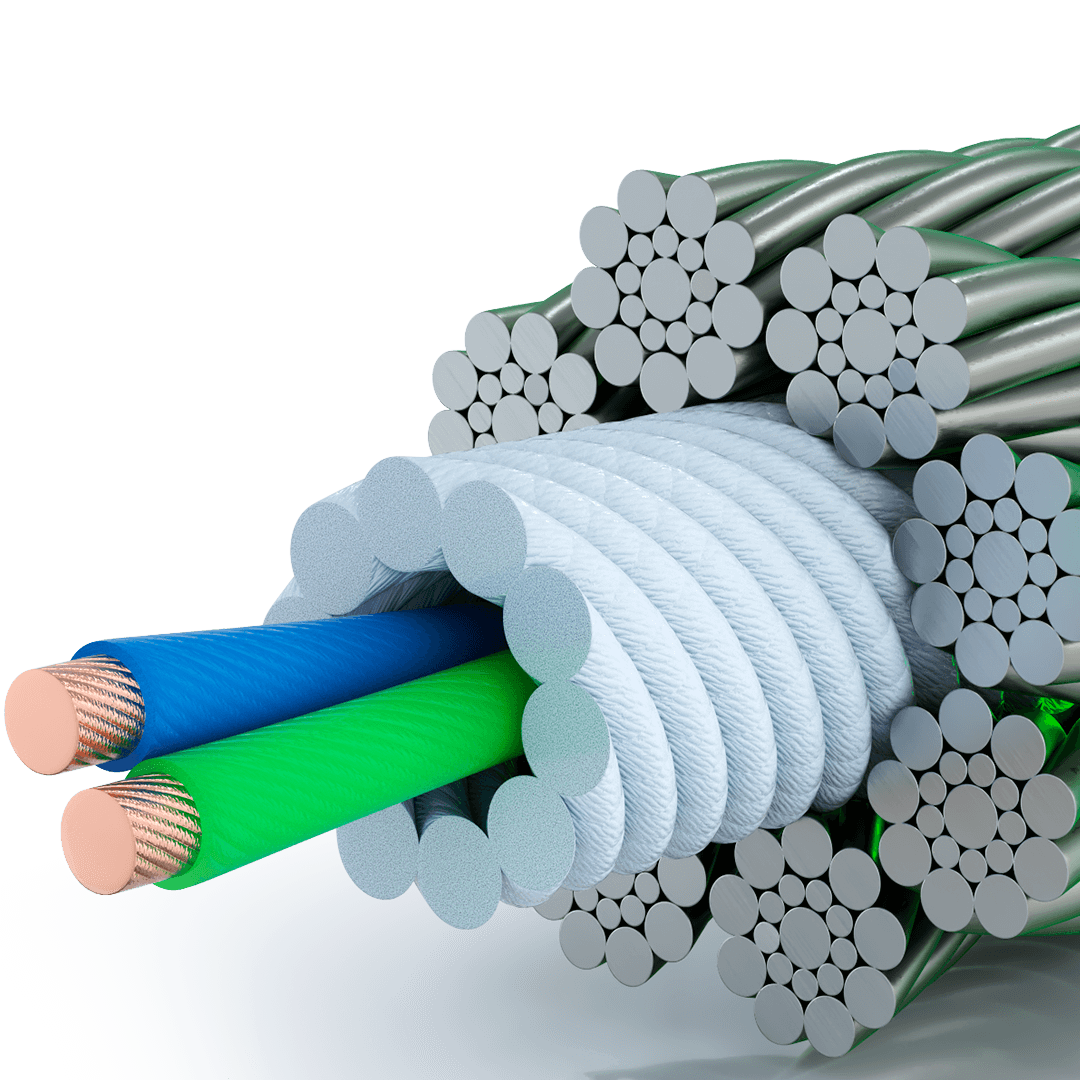

Special rope with electrical conductors for maintenance platforms

For performing steering or work functions these ropes include one or more electrical conductors.

Properties

  • galvanized
  • long service life
  • high number of bending cycles
  • syntetic fiber core

Technical data sheet Make contact


Technical data

Construction: 152 wires Seale (8 x 19), regular lay

Technical terms of delivery to DIN EN 12385, ISO 4344

Standard number of conductors: 2 (for details see download)

Number of load-bearing wires in the outer strands: 152

Tensile grade 1770 N/mm², steel wire galvanized

Permissible tolerance on nominal rope diameter: no load – 0 + 3 %

nom. rope dia. (mm) calculated mass (kg/m) min. breaking load (kN) electr. conductor (cross-section mm²) part-no.
6,5 0,163 21,9 2 x 0,60 775306530
6,5 0,163 21,9 3 x 0,60 775306533
7 0,198 26,1 2 x 0,60 775307030
7 0,198 26,1 2 x 0,96 775307036
8 0,254 33,2 2 x 0,96 775308030
8 0,254 33,2 3 x 0,96 775308034
8 0,254 33,2 2 x 0,60 775308036
9 0,311 42,3 3 x 0,96 775309035
10 0,374 51,9 3 x 0,96 775310031
12 0,572 80,4 3 x 0,96 775312032
13 0,657 93,1 3 x 0,96 775313032
9* 0,311 42,3 2 x 0,96 775309030
10* 0,374 51,9 2 x 0,96 775310030
12* 0,572 80,4 2 x 0,96 775312030
13* 0,657 93,1 2 x 0,96 775313030

*Special construction
