PAWO F7S

Product information

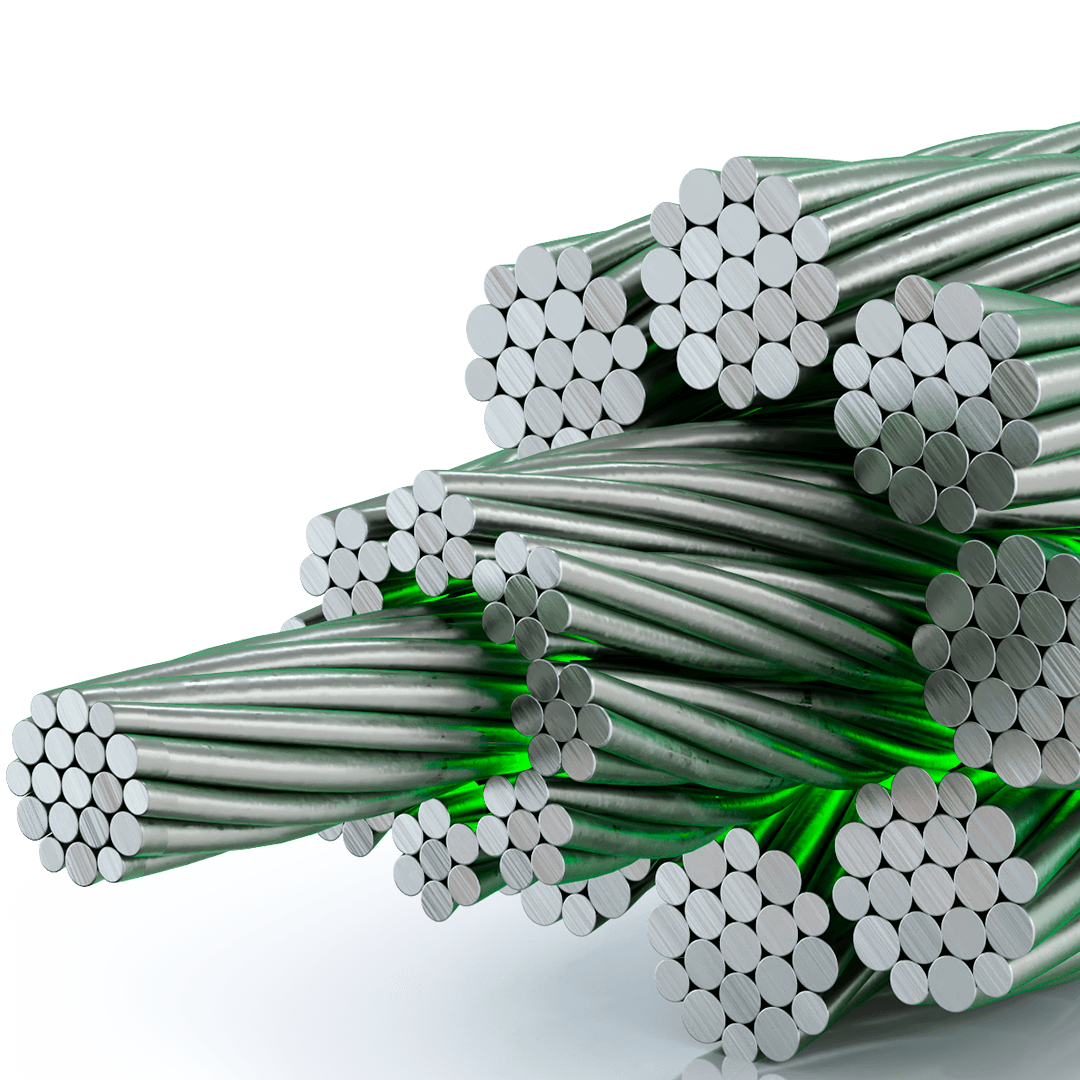

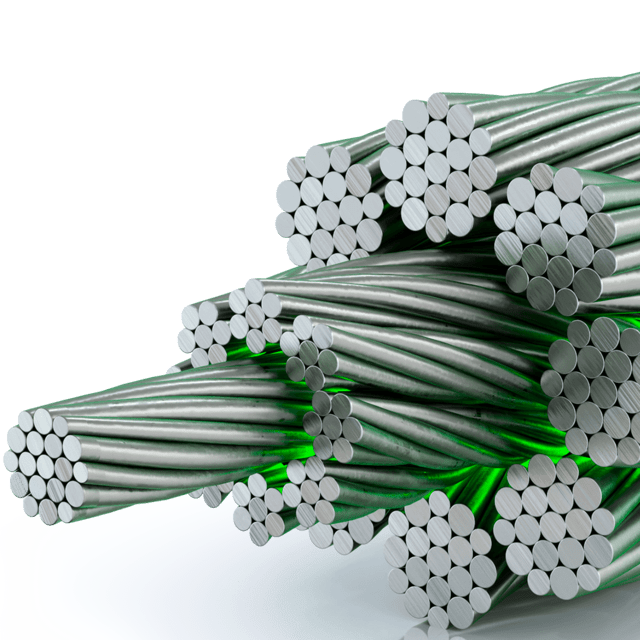

Special full steel rope with IWRC

Based on the PAWO F7 the PAWO F7S was developed. The fiber component of the F7 steel core was replaced by a steel strand, thus achieving an even higher metallic cross-section plus an even higher breaking strength.

This full steel rope is primarily used in installations where the rope service life is more affected by the impact of permanent bends than by wear from the traction sheave. The steel wire rope core minimizes rope elongation in comparison to the types F3 and F7. As a consequence, the rope is particularly suitable for high-rise applications with many bending cycles.



Properties

  • medium and high-rise
  • intermediate to high number of bending cycles
  • normal to heavy usage levels
  • low stretch
  • geringe Dehung
  • long service life



Technical data sheet Make contact


Technical data

Construction: 8 x 19 Warrington with steel wire rope core, regular lay,

technical terms of delivery to DIN EN 12385, ISO 4344

load-bearing wires in the outer strands: 152

tensile grade 1570 N/mm2, steel wire bright or galvanized

rope Ø (permissible tolerance)
no load: with load (10% of Fmin):
max. 3% < 10 mm min. -1% <= 10 mm
max. 2% > 10 mm min. -1% > 10 mm
rope diameter (mm) calculated mass (kg/m) min. breaking load (kN) part-no.
8 0,28 44,6 711208030
9 0,356 56 711209030
10 0,436 69,5 711210030
11 0,523 83,1 711211030
12 0,619 98,9 711212030
13 0,727 116 711213030
14 0,857 134,8 711214030
15* 0,959 152,8 711215030
16** 1,1 176,1 711216030
18* 1,375 218,6 711218030
19*** * 1,544 245,2 711219030
20* 1,704 270,8 711220030

* No stock material
** Can also be used as 5/8"
*** Can also be used as 3/4"
