PAWO F10

Product information

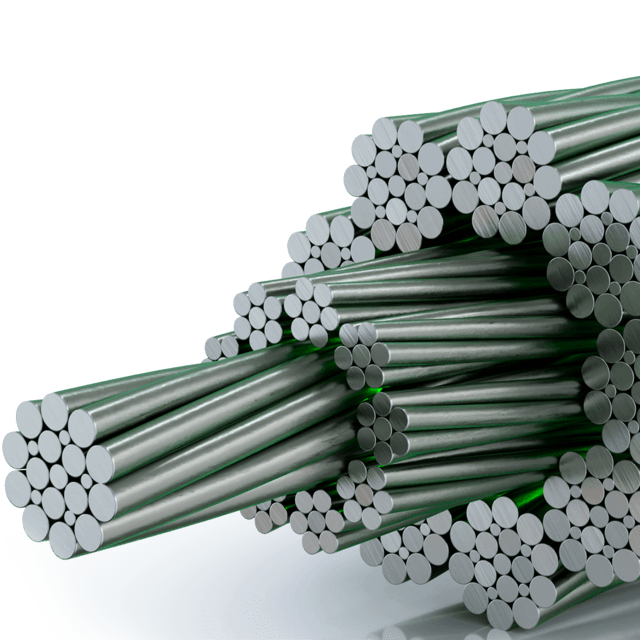

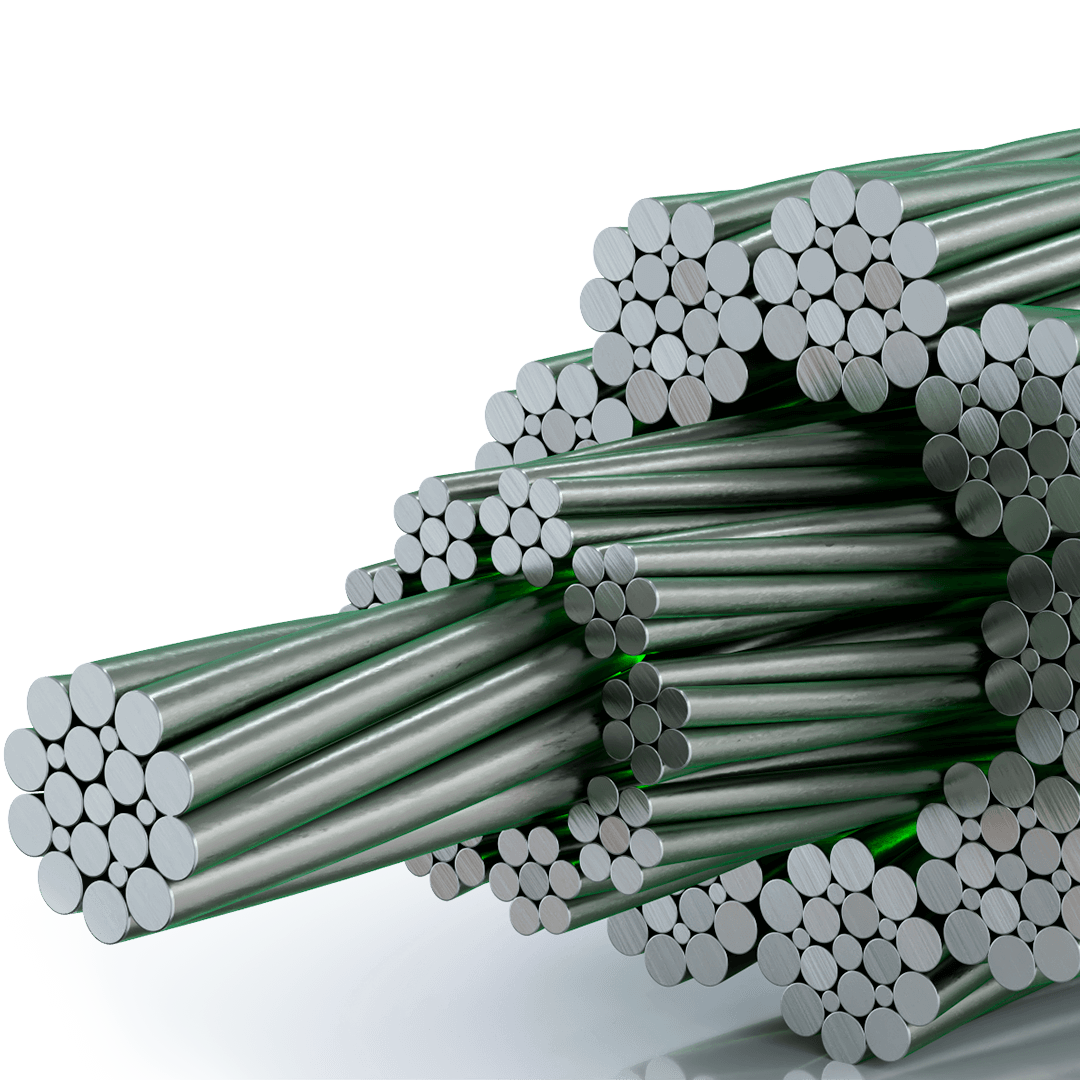

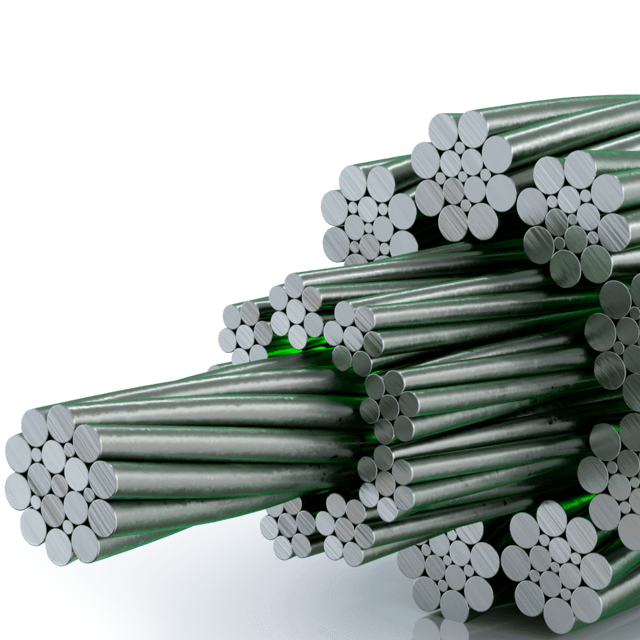

Special full steel rope with 9 outer strands

Our specially developed PAWO F10 is for the most demanding elevator installations. The rope´s 9 strand construction allows a tight fit of the rope in the groove.

Thus, this rope offers an extremely long service life, combined with an increased bending resistance. The compact structure of the core offers additional metallic cross-section.


Properties:

  • high rise
  • high number of bending cycles
  • heavy usage
  • low stretch
  • long service life



Construction: full steel rope with 9 strands, regular lay,

Technical terms of delivery to DIN EN 12385, ISO 4344

load bearing wires in the outer strands:

< 12 mm = 117

> 12 mm = 144

tensile grade 1570 N/mm2, steel wire bright or galvanized

Technical data sheet Make contact


Technical data

rope-Ø (permissible tolerance)
no load: with load (10% of Fmin):
max. 3% < 10 mm min. -1% <= 10 mm
max. 2% > 10 mm min. -1% > 10 mm
rope diameter(mm) calculated mass (kg/m) min. breaking load (kN) part-no.
8 0,270 43,2 721208032
9 0,340 54,8 721209032
10 0,420 67,2 721210032
11 0,503 80,2 721211032
12 0,600 95,6 721212032
13 0,707 113,4 721213032
14 0,850 135,7 721214032
15 0,950 152,8 721215032
16** 1,080 174 721216032
18* 1,410 219,7 721218032
19*** 1,510 244,9 721219032
20* 1,700 272,5 721220032

9,5(3/8") 0,380 60,5 721209530
12,7(1/2") 0,680 109,5 721212730
17,5(11/16") 1,300 208 721217530

* No stock material
** Can also be used as 5/8"
*** Can also be used as 3/4"
