Special rope for speed governors
To achieve proper operation, a variety of ropes is required to match the many different requirements of overspeed governors.

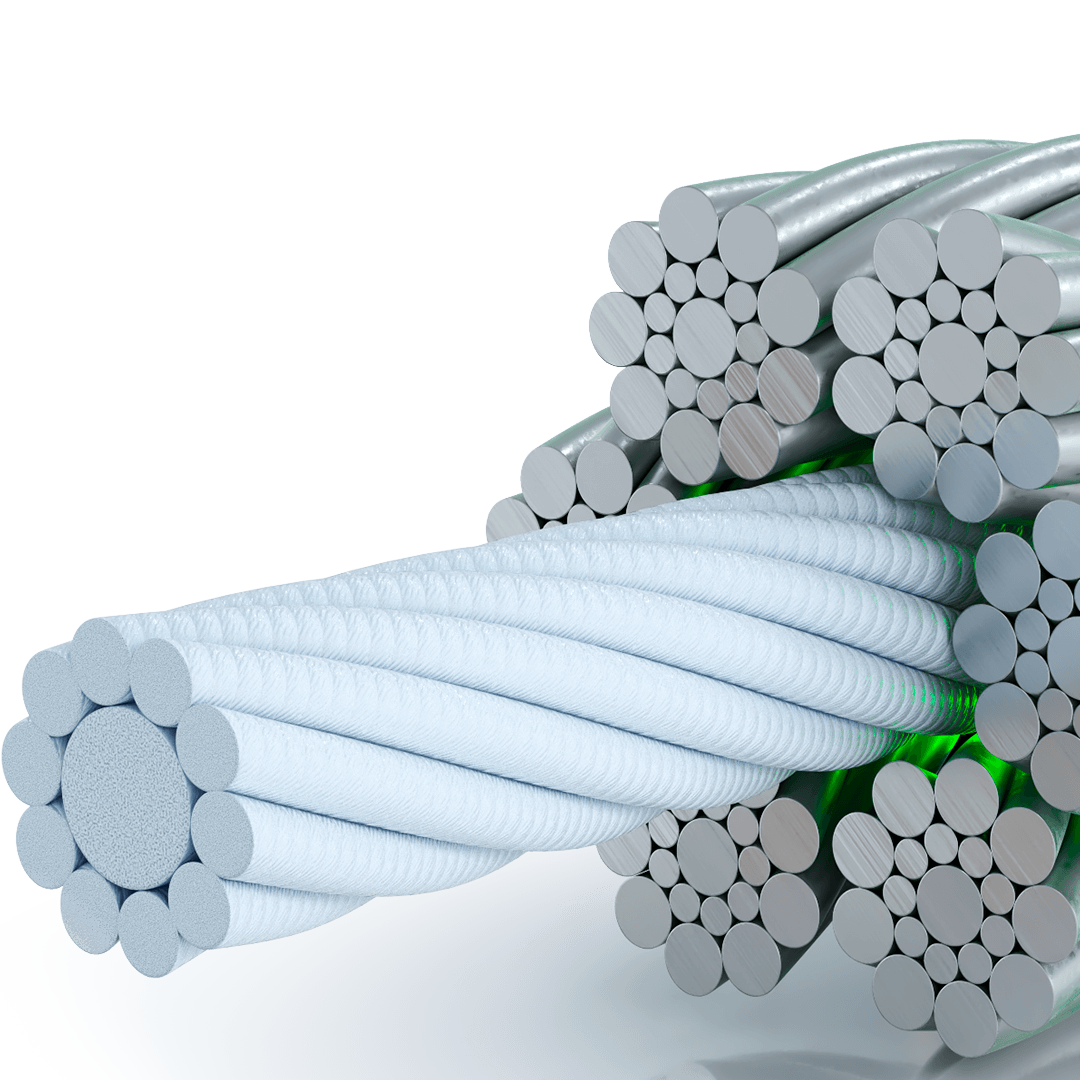

PAWO F1 – Wire Ropes for Speed Governors
Technical data
Please see the table below for a survey on the ropes most commonly used.
| rope-Ø (mm) | part- no. | material | calculated mass (kg/m) | min-breaking load (kN) | construction | |
|---|---|---|---|---|---|---|
| (Picture will follow) |
6,0 6,0 |
581306011 585306011 |
U B |
0,126 0,126 |
21,0 21,0 |
6 x 19 S - SFC 1770 U sZ 6 x 19 S - SFC 1770 B sZ |
| (Picture will follow) |
6,5 6,5 |
591306510 595306510 |
U B |
0,160 0,160 |
25,8 25,8 |
6 x 19 W - NFC 1770 U sZ 6 x 19 W - NFC 1770 B sZ |
| (Picture will follow) |
6,5 6,5 8,0 |
591306530 595306530 591308030 |
U B U |
0,180 0,180 0,280 |
31,0 31,0 47,0 |
6 x 19 W - WSC 1770 U sZ 6 x 19 W - WSC 1770 B sZ 6 x 19 W - WSC 1770 U sZ |
| (Picture will follow) | 6,5 | 741306531 | U | 0,17 | 29,7 | 8 x 19 W - IWRC 1770 U sZ |
| (Picture will follow) | 6 | 585306030 | B | 0,15 | 25,8 | 6 19 S - WSC 1770 B sZ |
