This rope is used in many standard elevators and has a proven history both in Europe as well as many other countries worldwide. You can still trust this proven rope design today.
Properties

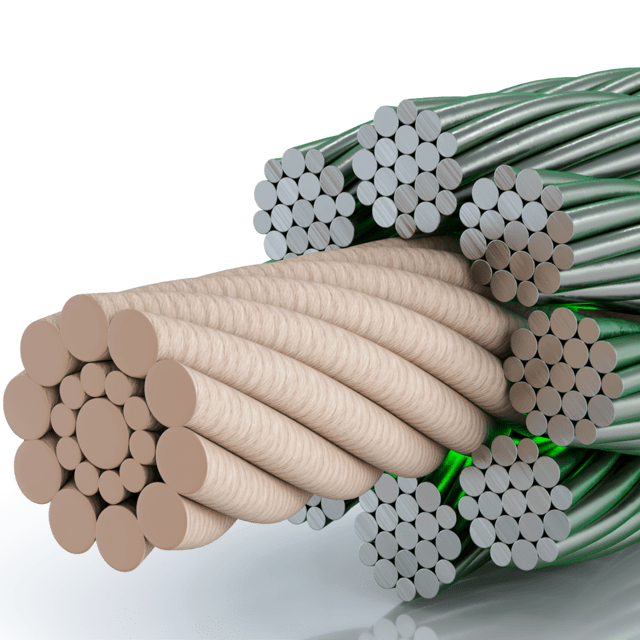

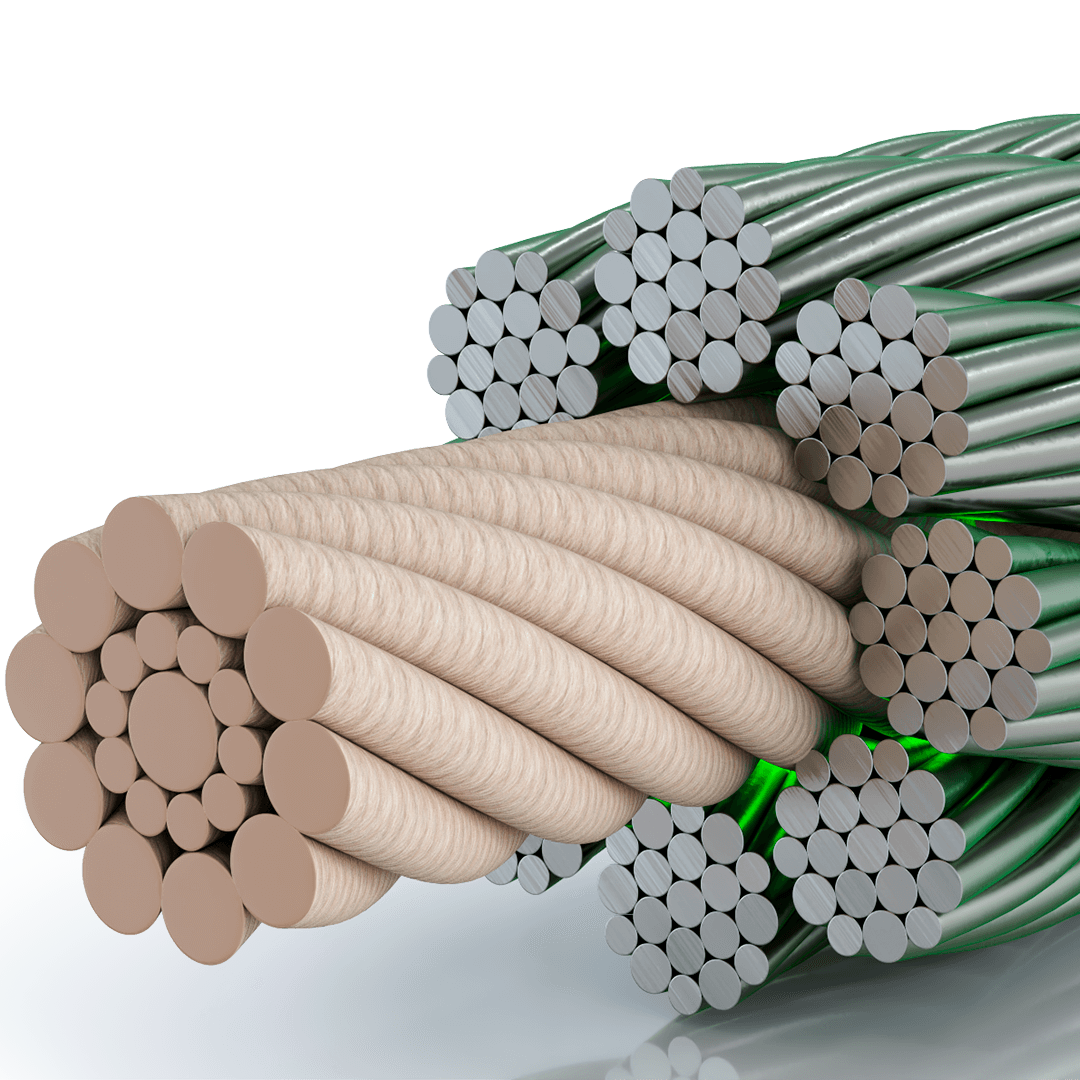

Construction: 8 x 19 Warrington with fiber core, regular lay,
load bearing wires in the outer strands: 152
tensile grade 1570 N/mm², steel wire bright or galvanized
| rope-Ø (permissible tolerance) | |
|---|---|
| no load: | with load (10% of Fmin): |
| max. 6% < 10 mm | min. -0% <= 10 mm |
| max. 5% > 10 mm | min. -0% > 10 mm |
| rope diameter (mm) | calculated mass (kg/m) | min. breaking load (kN) | part-no. |
|---|---|---|---|
| 8 | 0,23 | 32,0 | 631208012 |
| 9 | 0,29 | 40,7 | 631209012 |
| 10 | 0,35 | 50,0 | 631210012 |
| 11* | 0,42 | 60,2 | 631211012 |
| 12 | 0,50 | 71,3 | 631212012 |
| 13 | 0,58 | 82,5 | 631213012 |
| 14* | 0,68 | 97,2 | 631214012 |
| 15* | 0,78 | 110,4 | 631215012 |
| 16* | 0,89 | 126,1 | 631216012 |
| 18* | 1,11 | 157,5 | 631218012 |
| 19* | 1,24 | 176,4 | 631219012 |
* No stock material
