F819 S-FC-DT

Product information

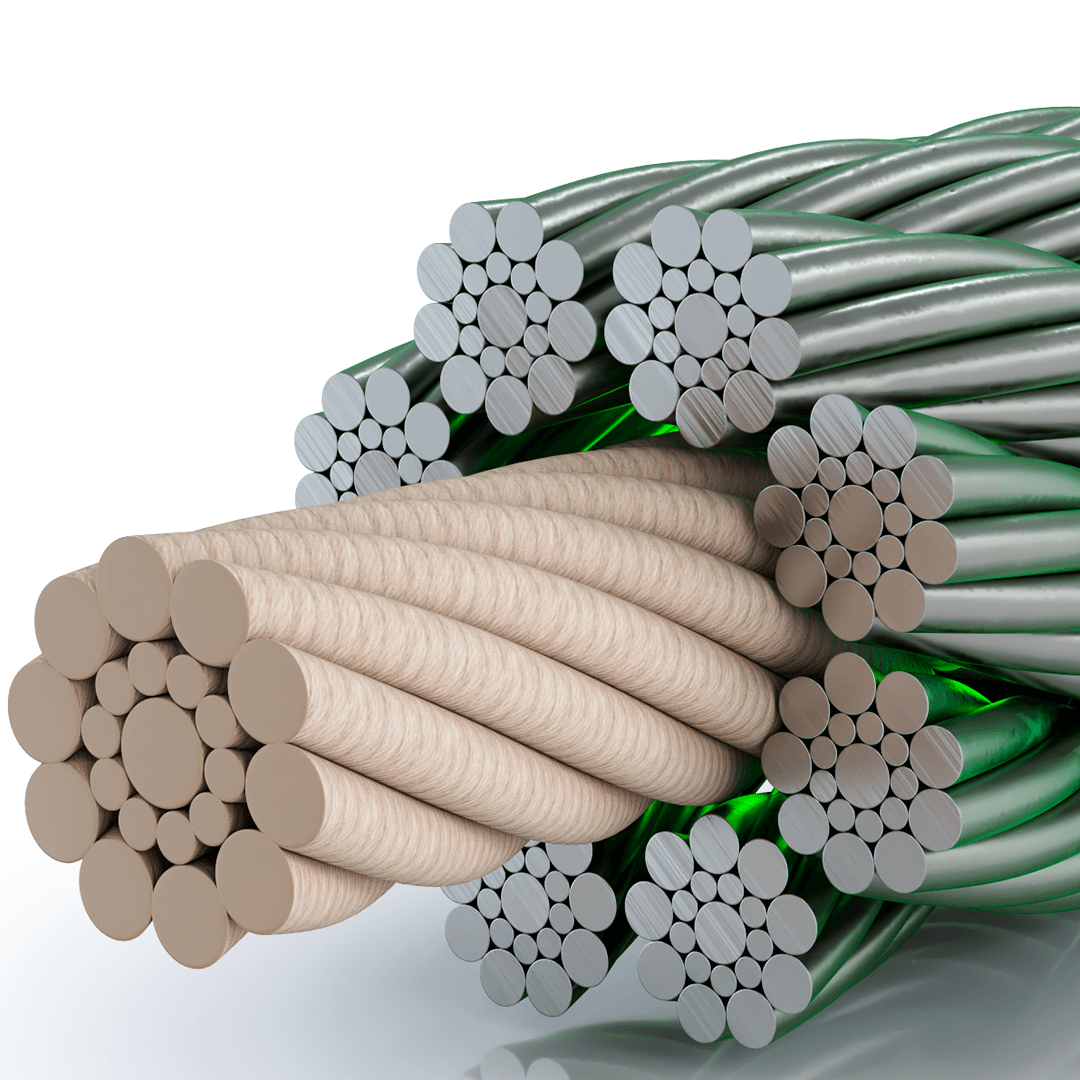

Elevator rope with fiber core

This rope is used in many standard elevators and has a proven history both in Europe and many other countries worldwide. Because of the dual tensile grade of the wires in the strands, this type may be used on softer traction sheaves. Thus, the hardness ratio rope/sheave is shifted towards the sheave.

Particularly for North America, you will find an even lower tensile grade of just 1180 N/mm2 outer strand hardness. See separate 4th Edition catalogue of Elevator Ropes for North America which you can also download.


Properties

  • particularly suitable for softer traction sheaves
  • excellent service life
  • light and flexible



Technical data sheet Make contact


Technical data

Construction: 8 x 19 Seale with fiber core, regular lay

technical terms of delivery to DIN EN 12385, ISO 4344; BS 302-4

load bearing wires in the outer strands: 152

rope-Ø (permissible tolerance)
no load: with load (10% of Fmin):
max. 6% < 10 mm min. -0% <= 10 mm
max. 5% > 10 mm min. -0% > 10 mm
rope diameter (mm) calculated mass (kg/m) min. breaking load (kN) part-no.
8 0,22 30,5 621108011
9* 0,28 38,4 621109011
10 0,35 48,2 621110011
11 0,43 58,4 621111011
12 0,5 69,2 621112011
13 0,59 80,7 621113011
14* 0,68 93 621114011
15* 0,78 108 621115011
16 0,89 121 621116011
18 1,11 154 621118011
19* 1,26 171 621119012

* No stock material
