PAWO F3

Product information

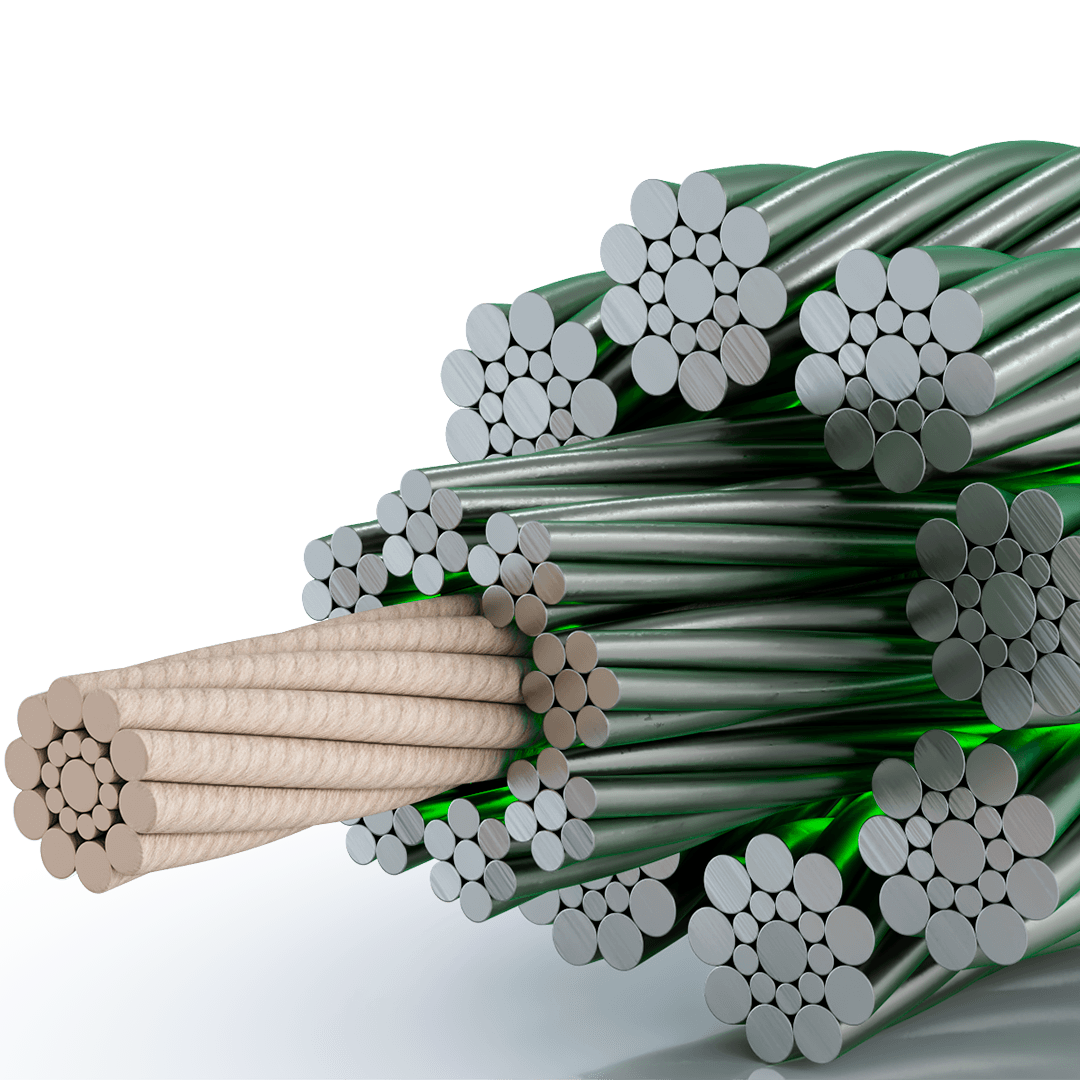

Special rope with steel-reinforced fiber core for elevators

For many years our elevator rope works standard PAWO F3 has a proven history in many types of traction elevator applications. The outer strands are designed in Seale construction. The 9 thicker wires of the outer strand layer offer a higher wear resistance.

The rope is primarily used where the service life is more defined by wear due to contact with the traction sheave than by rope fatigue due to bending. Deformations of the rope cross-section can be greatly reduced. The fiber content in the core of the steel wire rope works as a lubricant reservoir.



Properties

  • Low and mid-rise
  • small to intermediate number of bending cycles
  • normal to heavy usage levels
  • wear-resistant
  • low elongation
  • extended service life



Technical data sheet Make contact


Technical data

Construction: 8 x 19 Seale with steel-reinforced fiber core, regular lay,

Technical terms of delivery to DIN EN 12385, ISO 4344

Load-bearing wires in the outer strands: 152 Tensile grade 1570 N/mm², steel wire bright or galvanized

Rope Ø (permissible tolerance)
no load: with load (10% of Fmin)
max. 3% < 10 mm min. -1% <= 10 mm
max. 2% > 10 mm min. -1% > 10 mm
rope diameter (mm) calculated mass (kg/m) min. breaking load (kN) part-no.
8 0,243 38 761208040
9 0,307 48,3 761209033
10 0,385 60,5 761210034
11 0,465 73,4 761211033
12 0,546 86,8 761212033
13 0,65 103,1 761213033
14 0,752 119,3 761214033
15 0,867 137,6 761215033
16** 0,981 154,8 761216033
18* 1,226 193,6 761218033
19*** 1,376 217,6 761219033
20* 1,52 241,5 761220033

9.5 (3/8") 0,346 54,4 761209533
12.7 (1/2") 0,624 98,3 761212733
17.5 (11/16")* 1,199 187 761217533

* No stock material
** Can also be used as 5/8"
*** Can also be used as 3/4"
