This rope has a proven history, is used in many standard elevators and is proven in Europe and many other countries worldwide. You can still trust in this rope design today.
Properties

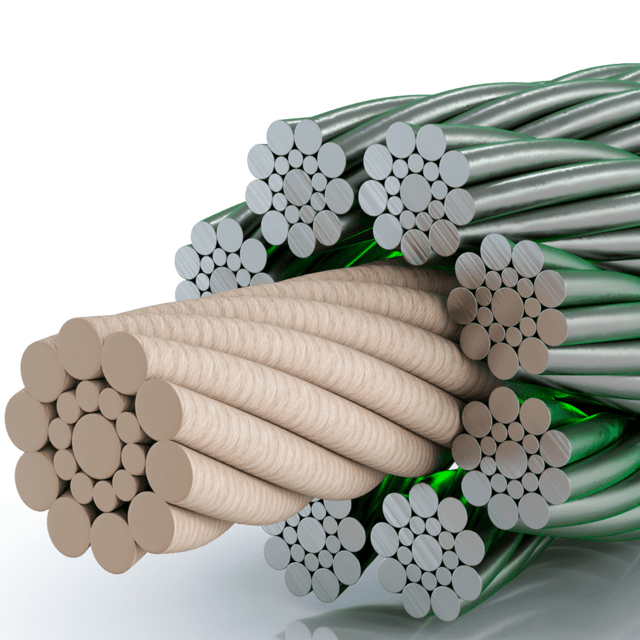

Construction: 8 x 19 Seale with fiber core, regular lay
technical terms of delivery to DIN EN 12385, ISO 4344
load bearing wires in the outer strands: 152
| rope-Ø (permissible tolerance) | |
|---|---|
| no load: | with load (10% of Fmin): |
| max. 6% < 10 mm | min. -0% <= 10 mm |
| max. 5% > 10 mm | min. -0% > 10 mm |
| rope diameter (mm) | calculated mass (kg/m) | min. breaking load (kN) | part-no. |
|---|---|---|---|
| 8 | 0,215 | 30,5 | 621208014 |
| 9 | 0,27 | 38,4 | 621209010 |
| 10 | 0,34 | 48,2 | 621210013 |
| 11 | 0,411 | 58,4 | 621211013 |
| 12 | 0,488 | 69,2 | 621212013 |
| 13 | 0,579 | 80,7 | 621213013 |
| 14* | 0,667 | 93 | 621214013 |
| 15* | 0,774 | 108 | 621215013 |
| 16 | 0,871 | 121 | 621216013 |
| 18* | 1,087 | 154 | 621218013 |
| 19 | 1,218 | 171 | 621219013 |
* No stock material
